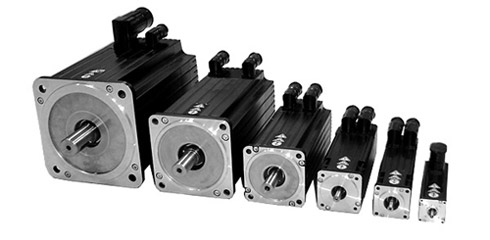

Fastact G Servomotors

Low Inertia and Compact Length

Moog’s Fastact G Series motors are designed for highly dynamic servo applications where positioning times of 30 mSec or less are often the norm. The Fastact G Series offers one of the industry’s widest power ranges with standard models available at continuous stall torque ratings from 0.15 to 77 Nm (1.3 to 681 lb-in). The modular design is supported by a variety of options with Moog’s application engineers capable of supplying fully customized solutions.

Features

  • AC Servomotor (Synchronous)
  • Low Inertia Compact Length
  • Type of Motor: Totally enclosed, natural cooling (optional fan ventilation)
  • High Voltage (600Vdc Brushless Servomotor) available
  • Flameproof Servomotors available

Benefits

  • Superior Dynamics improves cycle time
  • Compact, lightweight
  • Proprietary low-cogging design
  • Rugged, minimum maintenance
  • Flexible design



  Measuring Unit FASTACT G
Continuous stall torque M° Nm [lb-in]

0.15-77
[1.3-681]
Peak torque Mmax Nm [lb-in]

0.5-240
[4.4-2124]
Rated Speed nN min-1 [rpm] 9000-2200
Rated Power PN kW [hp]

0.13-12 [0.2-16]
Rated Torque MN Nm [lb-in]

0.14-48 [1.2-425]
Moment of Inertia J Kg cm2
[lb-insec2 x 10-4]

0.09-152 [0.8-1345]
Position transducer

Standard

Optional

Resolver

Encoder
Temperature monitoring   NTC or PTC
Brake   Optional
Rated bus voltage Vdc

V

325/565
Certificate/marks

CE, UL/cUL
Cooling   Natural

Literature

Catalog - Fastact G400 Series Brushless Servomotor
